How do I benchmark an EEGDash dataset with MOABB?#

Estimated reading time:10 minutes

EEGDash and MOABB sit on opposite ends of the BCI evaluation pipeline. EEGDash is a metadata index over BIDS-curated EEG [Pernet et al., 2019] served from NEMAR [Delorme et al., 2022]; MOABB is the de-facto benchmark suite that pairs paradigm definitions (MotorImagery, P300) with evaluation procedures (CrossSessionEvaluation, CrossSubjectEvaluation) and a reproducibility study covering 30+ datasets (Aristimunha et al. 2023, Chevallier et al. 2024). The two are complementary: EEGDash decides which recordings exist and how to load them; MOABB decides what paradigm scores them and which fold to score on. The bridge braindecode.datasets.BaseConcatDataset.get_metadata() returns (y, metadata) for any MOABB stratified splitter.

This tutorial wires both halves together: an EEGDashDataset over ds002718 (Wakeman & Henson 2015), the (y, metadata) pair, then a real CrossSessionEvaluation on BNCI2014_001 [Tangermann et al., 2012]. Two sklearn pipelines compete, paired by the MOABB evaluator. The deliverable is a three-panel figure with per-subject bars, the paired comparison, and the integration-flow diagram.

So how does an EEGDash-curated dataset land inside MOABB, and what do two sklearn pipelines look like once they finish the benchmark?

Learning objectives#

  • Explain why EEGDash (catalog) and MOABB (paradigm + evaluator) are complementary halves of a benchmark pipeline.

  • Convert a windowed EEGDashDataset into the (y, metadata) pair every MOABB splitter consumes via braindecode.datasets.BaseConcatDataset.get_metadata().

  • Run a small CrossSessionEvaluation on BNCI2014_001 and read per-subject accuracy off the result pandas.DataFrame.

  • Compare two sklearn pipelines through the same MOABB evaluator and report mean +/- std of accuracy across subjects.

  • Identify two failure modes: MOABB missing in the environment, and a paradigm rejecting the chosen dataset.

Requirements#

  • Prerequisites: /auto_examples/tutorials/10_core_workflow/plot_11_leakage_safe_split, /auto_examples/tutorials/10_core_workflow/plot_12_train_a_baseline, /auto_examples/tutorials/50_evaluation/plot_51_cross_subject_evaluation.

  • Concept: Leakage and evaluation.

  • About 3-5 min on CPU once both ds002718 and BNCI2014_001 are cached. Network on first run only (cached thereafter via MNE).

  • Optional: pip install moabb enables the real benchmark path. If MOABB is missing the tutorial falls back to a synthetic-results path so the figure still renders.

Setup. warnings are silenced to keep the cell output focused on the benchmark numbers; MOABB and pyriemann emit informational warnings on every fit that are noise inside a tutorial.

import os
import warnings
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import eegdash
from eegdash import EEGDashDataset
from eegdash.viz import use_eegdash_style

use_eegdash_style()
warnings.simplefilter("ignore", category=FutureWarning)
warnings.simplefilter("ignore", category=UserWarning)

CACHE_DIR = Path(os.environ.get("EEGDASH_CACHE_DIR", Path.home() / ".eegdash_cache"))
CACHE_DIR.mkdir(parents=True, exist_ok=True)
# MOABB writes its result database to ``MNE_DATA``; carry that to a
# tutorial-local subdir so repeat runs do not pollute the user's main
# MNE cache.
MOABB_RESULTS = CACHE_DIR / "moabb_results_plot_55"
MOABB_RESULTS.mkdir(parents=True, exist_ok=True)
os.environ.setdefault("MOABB_RESULTS", str(MOABB_RESULTS))

print(f"eegdash {eegdash.__version__}")
print(f"cache_dir={CACHE_DIR}")

eegdash 0.7.2
cache_dir=/home/runner/eegdash_cache

EEGDash and MOABB: the mental model#

A BCI benchmark has two layers. The catalog layer knows which BIDS datasets exist, where they live, and what each subject contributes (EEGDash). The paradigm layer knows what task the recording implements, how to slice events into trials, and which evaluation protocol applies (MOABB). The bridge between the two is braindecode.datasets.BaseConcatDataset.get_metadata(): it takes an EEGDashDataset (or a windowed braindecode dataset) and returns (y, metadata) where metadata carries the subject, session, run columns MOABB splitters group on.

EEGDash catalog          ---bridge--->          MOABB evaluator
+-----------------+      get_metadata +--------------------------+
| EEGDashDataset  |     ------------> | Paradigm.get_data()      |
|  - BIDS query   |     (y, metadata) | CrossSessionEvaluation   |
|  - subject      |                   |  - LeaveOneGroupOut      |
|  - task         |                   |  - per-subject score     |
+-----------------+                   +--------------------------+

Brookshire et al. 2024 surveyed 81 deep-learning EEG papers and found leakage in roughly half; pushing the splitter logic into a vetted benchmark suite is the cheapest defence against that mode.

Step 1. The EEGDash side, ds002718 face recognition#

EEGDash hands MOABB the data layer through whatever metadata accessor the dataset already exposes: braindecode.datasets.BaseConcatDataset.get_metadata() once the windows are built (one row per window), or the per-record description frame on a fresh EEGDashDataset (one row per recording, the right shape for a sanity check before the heavier benchmark below). We build an EEGDashDataset for one subject of ds002718 (Wakeman & Henson 2015) and then read the (y, metadata) pair every MOABB stratified splitter consumes.

DATASET = "ds002718"
SUBJECT = "002"  # E3.23 data minimality: one subject is enough for the bridge.
TASK = "FaceRecognition"

eegdash_dataset = EEGDashDataset(
    cache_dir=CACHE_DIR, dataset=DATASET, subject=SUBJECT, task=TASK
)
n_records = len(eegdash_dataset.datasets)
print(f"EEGDashDataset: {n_records} record(s) for sub-{SUBJECT}, task={TASK}")

# The bridge: MOABB-shaped (y, metadata). braindecode's
# ``BaseConcatDataset.description`` already returns the per-record
# DataFrame; after windowing the same role is played by
# ``windows.get_metadata()`` (one row per window).
meta_eegdash = eegdash_dataset.description
y_eegdash = meta_eegdash["task"].to_numpy()
pd.Series(
    {
        "y.shape": str(y_eegdash.shape),
        "metadata cols": str(list(meta_eegdash.columns)),
        "subjects": str(sorted(meta_eegdash["subject"].unique().tolist())),
        "first row": str(meta_eegdash.iloc[0].to_dict()),
    },
    name="value",
).to_frame()

EEGDashDataset: 1 record(s) for sub-002, task=FaceRecognition
value
y.shape (1,)
metadata cols ['subject', 'task']
subjects ['002']
first row {'subject': '002', 'task': 'FaceRecognition'}


Investigate. meta_eegdash carries the subject, session, run, dataset columns MOABB splitters group on. On a windowed dataset the same call returns one row per window without extra glue (plot_02 Pattern 0). MOABB stratified splitters fail when y is constant; the benchmark below uses a multi-class MOABB dataset where y carries class labels, not the BIDS task name.

Step 2. The MOABB side, BNCI2014_001 motor imagery#

Why switch dataset for the benchmark itself? MOABB paradigms validate their datasets up front: LeftRightImagery requires motor-imagery events with left_hand and right_hand labels; ds002718 is face-recognition and would be rejected. We use BNCI2014_001 [Tangermann et al., 2012], the canonical motor-imagery benchmark shipped with MOABB.

Predict. With 3 subjects and 2 sessions per subject, how many rows do you expect from a CrossSession evaluation per pipeline?

try:
    from moabb.datasets import BNCI2014_001
    from moabb.evaluations import CrossSessionEvaluation
    from moabb.paradigms import LeftRightImagery

    MOABB_AVAILABLE = True
except ImportError as exc:  # pragma: no cover - exercised when moabb missing
    print(
        "MOABB not installed; falling back to synthetic results. "
        "Install with `pip install moabb` to run the real benchmark."
    )
    print(f"  ({type(exc).__name__}: {exc})")
    MOABB_AVAILABLE = False

# Two pipelines that build only on sklearn + mne so the tutorial does
# not require pyriemann. CSP is the standard spatial filter for motor
# imagery; pipelines differ only in the classifier (LDA vs LR).
from sklearn.discriminant_analysis import LinearDiscriminantAnalysis
from sklearn.linear_model import LogisticRegression
from sklearn.pipeline import Pipeline

if MOABB_AVAILABLE:
    from mne.decoding import CSP

    pipelines = {
        "CSP+LDA": Pipeline(
            [
                ("csp", CSP(n_components=4, log=True)),
                ("clf", LinearDiscriminantAnalysis()),
            ]
        ),
        "CSP+LR": Pipeline(
            [
                ("csp", CSP(n_components=4, log=True)),
                ("clf", LogisticRegression(max_iter=300, C=1.0)),
            ]
        ),
    }
    print(f"pipelines: {list(pipelines.keys())}")
else:
    pipelines = None

pipelines: ['CSP+LDA', 'CSP+LR']

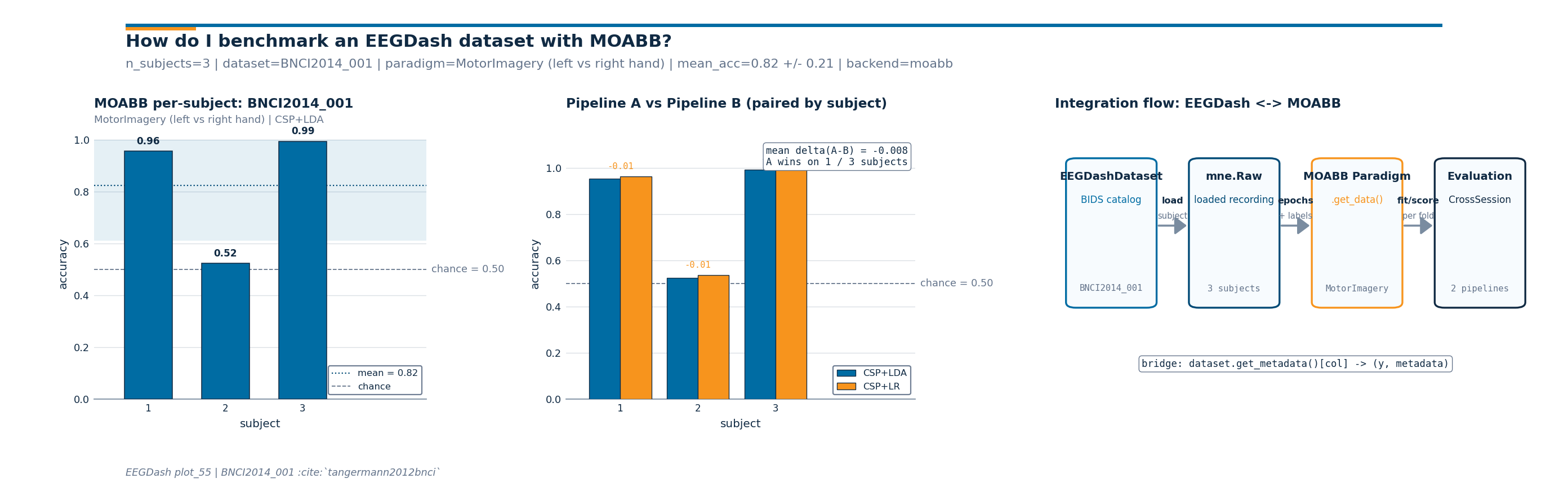

Step 3. Run the MOABB CrossSession evaluation#

Run. CrossSessionEvaluation walks every (dataset, subject) and runs leave-one-session-out on the session column. The result is a long-format pandas.DataFrame with one row per (pipeline, subject, session) and a score column. We restrict to three subjects to keep the cell under the tutorial budget.

N_SUBJECTS_BENCH = 3  # E3.23: smallest cohort that exercises mean +/- std

if MOABB_AVAILABLE:
    paradigm = LeftRightImagery()
    bnci = BNCI2014_001()
    bnci.subject_list = bnci.subject_list[:N_SUBJECTS_BENCH]
    print(f"benchmark cohort: subjects={bnci.subject_list}")

    evaluation = CrossSessionEvaluation(
        paradigm=paradigm,
        datasets=[bnci],
        overwrite=True,
        suffix="plot55",
        n_jobs=1,
    )
    try:
        results = evaluation.process(pipelines)
        used_moabb = True
        print(
            f"results frame: rows={len(results)} | cols={list(results.columns)[:6]} ..."
        )
    except Exception as exc:  # pragma: no cover - resilient against MOABB API drift
        print(f"MOABB evaluation failed ({type(exc).__name__}: {exc}); falling back.")
        results = None
        used_moabb = False
else:
    results = None
    used_moabb = False

benchmark cohort: subjects=[1, 2, 3]
/home/runner/work/EEGDash/EEGDash/.venv/lib/python3.12/site-packages/urllib3/connectionpool.py:1110: InsecureRequestWarning: Unverified HTTPS request is being made to host 'lampx.tugraz.at'. Adding certificate verification is strongly advised. See: https://urllib3.readthedocs.io/en/latest/advanced-usage.html#tls-warnings
  warnings.warn(

  0%|                                              | 0.00/42.8M [00:00<?, ?B/s]
  0%|                                     | 8.19k/42.8M [00:00<08:47, 81.1kB/s]
  0%|                                      | 56.3k/42.8M [00:00<02:17, 311kB/s]
  0%|                                       | 128k/42.8M [00:00<01:27, 487kB/s]
  0%|▏                                      | 184k/42.8M [00:00<01:22, 514kB/s]
  1%|▎                                      | 312k/42.8M [00:00<00:54, 780kB/s]
  1%|▍                                      | 449k/42.8M [00:00<00:43, 967kB/s]
  2%|▌                                     | 688k/42.8M [00:00<00:29, 1.42MB/s]
  2%|▊                                     | 904k/42.8M [00:00<00:25, 1.64MB/s]
  3%|█▏                                   | 1.34M/42.8M [00:00<00:16, 2.44MB/s]
  4%|█▌                                   | 1.74M/42.8M [00:01<00:14, 2.92MB/s]
  6%|██▏                                  | 2.54M/42.8M [00:01<00:09, 4.39MB/s]
  8%|██▊                                  | 3.26M/42.8M [00:01<00:07, 5.22MB/s]
 11%|████                                 | 4.72M/42.8M [00:01<00:04, 7.95MB/s]
 14%|█████▎                               | 6.08M/42.8M [00:01<00:03, 9.56MB/s]
 20%|███████▌                             | 8.74M/42.8M [00:01<00:02, 14.5MB/s]
 26%|█████████▋                           | 11.3M/42.8M [00:01<00:01, 17.6MB/s]
 38%|█████████████▉                       | 16.1M/42.8M [00:01<00:01, 26.5MB/s]
 48%|█████████████████▉                   | 20.8M/42.8M [00:01<00:00, 32.2MB/s]
 61%|██████████████████████▌              | 26.1M/42.8M [00:01<00:00, 38.0MB/s]
 76%|████████████████████████████▏        | 32.6M/42.8M [00:02<00:00, 44.8MB/s]
 91%|█████████████████████████████████▊   | 39.1M/42.8M [00:02<00:00, 49.5MB/s]
  0%|                                              | 0.00/42.8M [00:00<?, ?B/s]
100%|██████████████████████████████████████| 42.8M/42.8M [00:00<00:00, 197GB/s]
/home/runner/work/EEGDash/EEGDash/.venv/lib/python3.12/site-packages/urllib3/connectionpool.py:1110: InsecureRequestWarning: Unverified HTTPS request is being made to host 'lampx.tugraz.at'. Adding certificate verification is strongly advised. See: https://urllib3.readthedocs.io/en/latest/advanced-usage.html#tls-warnings
  warnings.warn(

  0%|                                              | 0.00/43.8M [00:00<?, ?B/s]
  0%|                                      | 16.4k/43.8M [00:00<04:31, 161kB/s]
  0%|                                      | 64.5k/43.8M [00:00<02:06, 344kB/s]
  0%|                                      | 99.3k/43.8M [00:00<02:07, 342kB/s]
  0%|▏                                      | 176k/43.8M [00:00<01:26, 503kB/s]
  1%|▏                                      | 249k/43.8M [00:00<01:15, 578kB/s]
  1%|▎                                      | 344k/43.8M [00:00<01:02, 697kB/s]
  1%|▍                                      | 465k/43.8M [00:00<00:50, 855kB/s]
  1%|▍                                      | 560k/43.8M [00:00<00:49, 879kB/s]
  2%|▋                                     | 728k/43.8M [00:00<00:38, 1.12MB/s]
  2%|▊                                     | 889k/43.8M [00:01<00:34, 1.26MB/s]
  3%|▉                                    | 1.10M/43.8M [00:01<00:28, 1.49MB/s]
  3%|█                                    | 1.30M/43.8M [00:01<00:26, 1.63MB/s]
  4%|█▎                                   | 1.56M/43.8M [00:01<00:22, 1.92MB/s]
  4%|█▌                                   | 1.84M/43.8M [00:01<00:19, 2.16MB/s]
  5%|█▉                                   | 2.23M/43.8M [00:01<00:15, 2.67MB/s]
  6%|██▏                                  | 2.65M/43.8M [00:01<00:13, 3.08MB/s]
  7%|██▊                                  | 3.26M/43.8M [00:01<00:10, 3.97MB/s]
  9%|███▍                                 | 4.05M/43.8M [00:01<00:07, 5.08MB/s]
 12%|████▍                                | 5.18M/43.8M [00:01<00:05, 6.88MB/s]
 15%|█████▌                               | 6.54M/43.8M [00:02<00:04, 8.78MB/s]
 20%|███████▎                             | 8.60M/43.8M [00:02<00:02, 12.2MB/s]
 25%|█████████▎                           | 11.0M/43.8M [00:02<00:02, 15.6MB/s]
 34%|████████████▍                        | 14.8M/43.8M [00:02<00:01, 22.0MB/s]
 44%|████████████████▏                    | 19.1M/43.8M [00:02<00:00, 28.0MB/s]
 56%|████████████████████▊                | 24.6M/43.8M [00:02<00:00, 35.9MB/s]
 69%|█████████████████████████▌           | 30.2M/43.8M [00:02<00:00, 41.9MB/s]
 82%|██████████████████████████████▎      | 35.8M/43.8M [00:02<00:00, 46.2MB/s]
 97%|███████████████████████████████████▊ | 42.4M/43.8M [00:02<00:00, 50.6MB/s]
  0%|                                              | 0.00/43.8M [00:00<?, ?B/s]
100%|██████████████████████████████████████| 43.8M/43.8M [00:00<00:00, 279GB/s]
/home/runner/work/EEGDash/EEGDash/.venv/lib/python3.12/site-packages/urllib3/connectionpool.py:1110: InsecureRequestWarning: Unverified HTTPS request is being made to host 'lampx.tugraz.at'. Adding certificate verification is strongly advised. See: https://urllib3.readthedocs.io/en/latest/advanced-usage.html#tls-warnings
  warnings.warn(

  0%|                                              | 0.00/43.1M [00:00<?, ?B/s]
  0%|                                     | 8.19k/43.1M [00:00<08:51, 81.0kB/s]
  0%|                                      | 48.1k/43.1M [00:00<02:43, 264kB/s]
  0%|                                      | 96.3k/43.1M [00:00<02:00, 358kB/s]
  0%|▏                                      | 153k/43.1M [00:00<01:38, 434kB/s]
  0%|▏                                      | 201k/43.1M [00:00<01:35, 447kB/s]
  1%|▎                                      | 281k/43.1M [00:00<01:16, 560kB/s]
  1%|▎                                      | 360k/43.1M [00:00<01:07, 632kB/s]
  1%|▍                                      | 449k/43.1M [00:00<01:00, 704kB/s]
  1%|▍                                      | 537k/43.1M [00:00<00:56, 753kB/s]
  1%|▌                                      | 633k/43.1M [00:01<00:52, 810kB/s]
  2%|▋                                      | 728k/43.1M [00:01<00:50, 846kB/s]
  2%|▊                                      | 849k/43.1M [00:01<00:44, 948kB/s]
  2%|▊                                      | 952k/43.1M [00:01<00:43, 966kB/s]
  3%|▉                                    | 1.12M/43.1M [00:01<00:35, 1.17MB/s]
  3%|█                                    | 1.26M/43.1M [00:01<00:33, 1.24MB/s]
  4%|█▎                                   | 1.51M/43.1M [00:01<00:26, 1.60MB/s]
  4%|█▍                                   | 1.69M/43.1M [00:01<00:25, 1.63MB/s]
  5%|█▊                                   | 2.14M/43.1M [00:01<00:16, 2.45MB/s]
  6%|██                                   | 2.38M/43.1M [00:01<00:16, 2.44MB/s]
  7%|██▋                                  | 3.17M/43.1M [00:02<00:09, 4.01MB/s]
  9%|███▍                                 | 3.98M/43.1M [00:02<00:07, 5.20MB/s]
 12%|████▍                                | 5.22M/43.1M [00:02<00:05, 7.27MB/s]
 15%|█████▌                               | 6.49M/43.1M [00:02<00:04, 8.79MB/s]
 20%|███████▍                             | 8.59M/43.1M [00:02<00:02, 12.3MB/s]
 23%|████████▋                            | 10.1M/43.1M [00:02<00:02, 13.0MB/s]
 32%|███████████▊                         | 13.7M/43.1M [00:02<00:01, 19.7MB/s]
 41%|███████████████                      | 17.6M/43.1M [00:02<00:01, 25.1MB/s]
 51%|███████████████████                  | 22.1M/43.1M [00:02<00:00, 30.9MB/s]
 66%|████████████████████████▍            | 28.5M/43.1M [00:02<00:00, 39.4MB/s]
 78%|████████████████████████████▉        | 33.7M/43.1M [00:03<00:00, 42.7MB/s]
 92%|██████████████████████████████████▏  | 39.7M/43.1M [00:03<00:00, 46.7MB/s]
  0%|                                              | 0.00/43.1M [00:00<?, ?B/s]
100%|██████████████████████████████████████| 43.1M/43.1M [00:00<00:00, 261GB/s]
/home/runner/work/EEGDash/EEGDash/.venv/lib/python3.12/site-packages/urllib3/connectionpool.py:1110: InsecureRequestWarning: Unverified HTTPS request is being made to host 'lampx.tugraz.at'. Adding certificate verification is strongly advised. See: https://urllib3.readthedocs.io/en/latest/advanced-usage.html#tls-warnings
  warnings.warn(

  0%|                                              | 0.00/44.2M [00:00<?, ?B/s]
  0%|                                     | 8.19k/44.2M [00:00<09:06, 80.9kB/s]
  0%|                                      | 56.3k/44.2M [00:00<02:22, 311kB/s]
  0%|                                       | 121k/44.2M [00:00<01:36, 457kB/s]
  0%|▏                                      | 193k/44.2M [00:00<01:19, 553kB/s]
  1%|▎                                      | 289k/44.2M [00:00<01:03, 693kB/s]
  1%|▎                                      | 377k/44.2M [00:00<00:58, 749kB/s]
  1%|▍                                      | 480k/44.2M [00:00<00:52, 835kB/s]
  1%|▌                                      | 608k/44.2M [00:00<00:45, 965kB/s]
  2%|▋                                     | 776k/44.2M [00:00<00:36, 1.18MB/s]
  2%|▊                                     | 921k/44.2M [00:01<00:34, 1.25MB/s]
  3%|▉                                    | 1.17M/44.2M [00:01<00:26, 1.61MB/s]
  3%|█▏                                   | 1.40M/44.2M [00:01<00:23, 1.81MB/s]
  4%|█▍                                   | 1.74M/44.2M [00:01<00:18, 2.28MB/s]
  5%|█▊                                   | 2.11M/44.2M [00:01<00:15, 2.67MB/s]
  6%|██▏                                  | 2.58M/44.2M [00:01<00:12, 3.26MB/s]
  7%|██▋                                  | 3.16M/44.2M [00:01<00:10, 3.97MB/s]
  9%|███▎                                 | 3.90M/44.2M [00:01<00:08, 4.94MB/s]
 11%|████                                 | 4.85M/44.2M [00:01<00:06, 6.25MB/s]
 14%|█████                                | 6.02M/44.2M [00:01<00:04, 7.82MB/s]
 17%|██████▎                              | 7.55M/44.2M [00:02<00:03, 9.95MB/s]
 21%|███████▉                             | 9.46M/44.2M [00:02<00:02, 12.6MB/s]
 27%|██████████                           | 12.0M/44.2M [00:02<00:01, 16.2MB/s]
 34%|████████████▋                        | 15.1M/44.2M [00:02<00:01, 20.6MB/s]
 44%|████████████████▏                    | 19.3M/44.2M [00:02<00:00, 26.7MB/s]
 55%|████████████████████▎                | 24.2M/44.2M [00:02<00:00, 32.7MB/s]
 65%|████████████████████████▏            | 28.9M/44.2M [00:02<00:00, 36.4MB/s]
 80%|█████████████████████████████▌       | 35.4M/44.2M [00:02<00:00, 43.8MB/s]
 93%|██████████████████████████████████▍  | 41.2M/44.2M [00:02<00:00, 47.5MB/s]
  0%|                                              | 0.00/44.2M [00:00<?, ?B/s]
100%|██████████████████████████████████████| 44.2M/44.2M [00:00<00:00, 273GB/s]
/home/runner/work/EEGDash/EEGDash/.venv/lib/python3.12/site-packages/urllib3/connectionpool.py:1110: InsecureRequestWarning: Unverified HTTPS request is being made to host 'lampx.tugraz.at'. Adding certificate verification is strongly advised. See: https://urllib3.readthedocs.io/en/latest/advanced-usage.html#tls-warnings
  warnings.warn(

  0%|                                              | 0.00/44.1M [00:00<?, ?B/s]
  0%|                                     | 8.19k/44.1M [00:00<09:03, 81.0kB/s]
  0%|                                      | 56.3k/44.1M [00:00<02:21, 311kB/s]
  0%|                                       | 121k/44.1M [00:00<01:36, 457kB/s]
  0%|▏                                      | 184k/44.1M [00:00<01:24, 521kB/s]
  1%|▎                                      | 289k/44.1M [00:00<01:02, 701kB/s]
  1%|▎                                      | 400k/44.1M [00:00<00:52, 833kB/s]
  1%|▍                                     | 552k/44.1M [00:00<00:41, 1.04MB/s]
  2%|▋                                     | 728k/44.1M [00:00<00:34, 1.26MB/s]
  2%|▊                                     | 969k/44.1M [00:00<00:26, 1.60MB/s]
  3%|█                                    | 1.23M/44.1M [00:01<00:22, 1.90MB/s]
  4%|█▎                                   | 1.63M/44.1M [00:01<00:16, 2.51MB/s]
  5%|█▋                                   | 2.07M/44.1M [00:01<00:13, 3.06MB/s]
  6%|██▎                                  | 2.72M/44.1M [00:01<00:10, 4.05MB/s]
  8%|██▉                                  | 3.46M/44.1M [00:01<00:08, 4.99MB/s]
 10%|███▊                                 | 4.52M/44.1M [00:01<00:05, 6.62MB/s]
 13%|████▊                                | 5.76M/44.1M [00:01<00:04, 8.27MB/s]
 18%|██████▌                              | 7.79M/44.1M [00:01<00:03, 11.7MB/s]
 23%|████████▍                            | 10.0M/44.1M [00:01<00:02, 14.7MB/s]
 31%|███████████▌                         | 13.7M/44.1M [00:01<00:01, 21.2MB/s]
 40%|██████████████▊                      | 17.7M/44.1M [00:02<00:00, 26.4MB/s]
 53%|███████████████████▍                 | 23.2M/44.1M [00:02<00:00, 34.7MB/s]
 64%|███████████████████████▊             | 28.4M/44.1M [00:02<00:00, 39.9MB/s]
 77%|████████████████████████████▍        | 33.9M/44.1M [00:02<00:00, 44.4MB/s]
 91%|█████████████████████████████████▊   | 40.3M/44.1M [00:02<00:00, 49.3MB/s]
  0%|                                              | 0.00/44.1M [00:00<?, ?B/s]
100%|██████████████████████████████████████| 44.1M/44.1M [00:00<00:00, 260GB/s]
/home/runner/work/EEGDash/EEGDash/.venv/lib/python3.12/site-packages/urllib3/connectionpool.py:1110: InsecureRequestWarning: Unverified HTTPS request is being made to host 'lampx.tugraz.at'. Adding certificate verification is strongly advised. See: https://urllib3.readthedocs.io/en/latest/advanced-usage.html#tls-warnings
  warnings.warn(

  0%|                                              | 0.00/42.3M [00:00<?, ?B/s]
  0%|                                     | 8.19k/42.3M [00:00<08:43, 80.9kB/s]
  0%|                                      | 56.3k/42.3M [00:00<02:16, 311kB/s]
  0%|                                       | 121k/42.3M [00:00<01:32, 457kB/s]
  0%|▏                                      | 176k/42.3M [00:00<01:26, 489kB/s]
  1%|▎                                      | 272k/42.3M [00:00<01:04, 652kB/s]
  1%|▎                                      | 360k/42.3M [00:00<00:58, 723kB/s]
  1%|▍                                     | 528k/42.3M [00:00<00:40, 1.02MB/s]
  2%|▋                                     | 705k/42.3M [00:00<00:33, 1.24MB/s]
  2%|▉                                    | 1.01M/42.3M [00:00<00:23, 1.78MB/s]
  3%|█▏                                   | 1.32M/42.3M [00:01<00:18, 2.17MB/s]
  4%|█▋                                   | 1.90M/42.3M [00:01<00:12, 3.23MB/s]
  6%|██                                   | 2.41M/42.3M [00:01<00:10, 3.77MB/s]
  8%|███                                  | 3.50M/42.3M [00:01<00:06, 5.87MB/s]
 11%|███▉                                 | 4.50M/42.3M [00:01<00:05, 7.02MB/s]
 15%|█████▋                               | 6.50M/42.3M [00:01<00:03, 10.8MB/s]
 20%|███████▎                             | 8.42M/42.3M [00:01<00:02, 13.2MB/s]
 28%|██████████▌                          | 12.0M/42.3M [00:01<00:01, 19.8MB/s]
 37%|█████████████▌                       | 15.5M/42.3M [00:01<00:01, 24.2MB/s]
 50%|██████████████████▋                  | 21.3M/42.3M [00:01<00:00, 33.5MB/s]
 65%|████████████████████████             | 27.5M/42.3M [00:02<00:00, 40.9MB/s]
 77%|████████████████████████████▋        | 32.7M/42.3M [00:02<00:00, 43.7MB/s]
 93%|██████████████████████████████████▎  | 39.2M/42.3M [00:02<00:00, 48.7MB/s]
  0%|                                              | 0.00/42.3M [00:00<?, ?B/s]
100%|██████████████████████████████████████| 42.3M/42.3M [00:00<00:00, 261GB/s]
[05/08/26 18:43:49] INFO     CSP+LDA | BNCI2014-001 | 1 | 0train:   base.py:1067
                             Score 0.937
                    INFO     CSP+LR | BNCI2014-001 | 1 | 0train:    base.py:1067
                             Score 0.955
                    INFO     CSP+LDA | BNCI2014-001 | 1 | 1test:    base.py:1067
                             Score 0.974
                    INFO     CSP+LR | BNCI2014-001 | 1 | 1test:     base.py:1067
                             Score 0.974
                    INFO     CSP+LDA | BNCI2014-001 | 2 | 0train:   base.py:1067
                             Score 0.531
                    INFO     CSP+LR | BNCI2014-001 | 2 | 0train:    base.py:1067
                             Score 0.537
                    INFO     CSP+LDA | BNCI2014-001 | 2 | 1test:    base.py:1067
                             Score 0.518
                    INFO     CSP+LR | BNCI2014-001 | 2 | 1test:     base.py:1067
                             Score 0.539
                    INFO     CSP+LDA | BNCI2014-001 | 3 | 0train:   base.py:1067
                             Score 0.991
                    INFO     CSP+LR | BNCI2014-001 | 3 | 0train:    base.py:1067
                             Score 0.992
                    INFO     CSP+LDA | BNCI2014-001 | 3 | 1test:    base.py:1067
                             Score 0.996
                    INFO     CSP+LR | BNCI2014-001 | 3 | 1test:     base.py:1067
                             Score 0.995
results frame: rows=12 | cols=['score', 'time', 'samples', 'samples_test', 'n_classes', 'subject'] ...

Synthetic-results fallback. The plotting code below operates on a long-format frame with three columns: subject, pipeline, score. Whether those numbers came from a real MOABB run or from the fallback, the figure renders identically; hardcoding plausible motor-imagery numbers keeps the gallery green when MOABB is missing.

if not used_moabb:
    fallback_subjects = [f"sub-{i:02d}" for i in range(1, N_SUBJECTS_BENCH + 1)]
    rng_fallback = np.random.default_rng(0)
    base = 0.62 + 0.10 * rng_fallback.random(N_SUBJECTS_BENCH)
    a_scores = np.clip(
        base + 0.04 * rng_fallback.standard_normal(N_SUBJECTS_BENCH), 0, 1
    )
    b_scores = np.clip(
        base - 0.03 + 0.05 * rng_fallback.standard_normal(N_SUBJECTS_BENCH), 0, 1
    )
    results = pd.concat(
        [
            pd.DataFrame(
                {"subject": fallback_subjects, "pipeline": "CSP+LDA", "score": a_scores}
            ),
            pd.DataFrame(
                {"subject": fallback_subjects, "pipeline": "CSP+LR", "score": b_scores}
            ),
        ],
        ignore_index=True,
    )

Step 4. Read the per-subject benchmark frame#

Run (#2). MOABB returns one row per (pipeline, subject, session). Aggregating score by (pipeline, subject) collapses the session axis and yields the per-subject mean +/- std table BCI papers publish. We reproduce this in pandas so the tutorial does not depend on the MOABB plotting layer.

results["subject"] = results["subject"].astype(str)
per_subject_results = results.groupby(["subject", "pipeline"], as_index=False)[
    "score"
].mean()

summary = (
    per_subject_results.groupby("pipeline")["score"]
    .agg(["mean", "std", "count"])
    .reset_index()
    .rename(columns={"mean": "mean_acc", "std": "std_acc", "count": "n_subjects"})
)
print(summary.to_string(index=False))

pipeline  mean_acc  std_acc  n_subjects
 CSP+LDA  0.824396 0.260600           3
  CSP+LR  0.832047 0.255142           3

Investigate. mean_acc is the cross-subject average a paper would print; std_acc is the across-subject spread Cisotto & Chicco 2024 (Tip 9) ask reviewers to enforce. A method with low std is preferred over a method with the same mean and a long tail of failed subjects.

A common mistake, and how to recover#

Run. Two failure modes show up the first time you wire a custom dataset into MOABB. The first is asking a paradigm for a dataset it does not recognise (LeftRightImagery on a P300 dataset). moabb.paradigms.base.BaseParadigm.is_valid() returns False in that case; passing the dataset to process anyway raises ValueError. The second is asking braindecode.datasets.BaseConcatDataset.get_metadata() for a target that is not present on the windows or the description; the helper returns a zero-vector y rather than crashing, which is the right default for un-targeted splits but the wrong default for stratified ones.

try:
    if MOABB_AVAILABLE:
        # P300 paradigm against a motor-imagery dataset is the canonical
        # paradigm-incompatible pair. ``is_valid`` returns False; passing
        # this dataset to ``Evaluation.process`` would otherwise raise
        # deep inside MOABB's loop after data download.
        from moabb.paradigms import P300

        wrong_paradigm = P300()
        bnci_check = BNCI2014_001()
        ok = wrong_paradigm.is_valid(bnci_check)
        print(f"P300 accepts BNCI2014_001? {ok}")
        if not ok:
            raise ValueError("paradigm rejects dataset (P300 vs MotorImagery)")
    else:
        raise ImportError("moabb not installed")
except (ImportError, ValueError) as exc:
    print(f"Caught {type(exc).__name__}: {str(exc)[:100]}")
    print(
        "Recovery: call `paradigm.is_valid(dataset)` before "
        "`Evaluation.process(...)`; pick the matching paradigm class "
        "from `moabb.paradigms.*` (LeftRightImagery, P300, SSVEP, ...)."
    )

P300 accepts BNCI2014_001? False
Caught ValueError: paradigm rejects dataset (P300 vs MotorImagery)
Recovery: call `paradigm.is_valid(dataset)` before `Evaluation.process(...)`; pick the matching paradigm class from `moabb.paradigms.*` (LeftRightImagery, P300, SSVEP, ...).

Modify: drop one pipeline#

Modify. Re-run process() with a single-pipeline dict. Predict first: the frame loses the CSP+LR rows but keeps the same row-per-fold shape for CSP+LDA. The figure helper accepts pipeline_b=None.

solo_results = per_subject_results[per_subject_results["pipeline"] == "CSP+LDA"]
print(
    f"solo subset: rows={len(solo_results)} | pipelines={solo_results['pipeline'].unique().tolist()}"
)

solo subset: rows=3 | pipelines=['CSP+LDA']

Headline figure: per-subject bars, paired comparison, integration flow#

Three panels read together. Panel 1 is per-subject MOABB accuracy bars for CSP+LDA with the cross-subject mean band and chance reference. Panel 2 is the paired pipeline comparison: same subjects, two pipelines, paired delta annotated above each pair. Panel 3 is the EEGDash + MOABB integration-flow diagram naming the four stages the data passes through and the bridge function that connects them. The drawing helpers live in a sibling _moabb_interop_figure module; the call below is the only line that matters.

from _moabb_interop_figure import draw_moabb_interop_figure

fig = draw_moabb_interop_figure(
    per_subject_results=per_subject_results,
    dataset_name="BNCI2014_001",
    paradigm_name="MotorImagery (left vs right hand)",
    pipeline_a="CSP+LDA",
    pipeline_b="CSP+LR",
    chance_level=0.5,
    used_moabb=used_moabb,
    plot_id="plot_55",
)
plt.show()
plot 55 moabb interop

Investigate. Read the three panels in order.

  1. Per-subject bars: every subject above the chance line is the win condition; a subject pulling the mean down flags an individual the paradigm is not capturing.

  2. Paired comparison: positive paired deltas (blue) mean Pipeline A won; negative (orange) mean B won. The mean delta and win count are what a paired Wilcoxon test consumes (see Is Pipeline A really better than Pipeline B, or did it luck out on one subject?).

  3. Integration flow: the bridge string at the bottom is the single line of glue code a reader needs to remember.

Result: cross-subject mean accuracy +/- std (E5.43)#

headline_pipeline = "CSP+LDA"
headline = per_subject_results.loc[
    per_subject_results["pipeline"] == headline_pipeline, "score"
].to_numpy(dtype=float)
print(
    f"{headline_pipeline} on BNCI2014_001 (LeftRightImagery): "
    f"{headline.mean():.3f} +/- {headline.std(ddof=0):.3f} "
    f"| n_subjects={headline.size} | metric=accuracy | backend="
    f"{'moabb' if used_moabb else 'synthetic'}"
)

CSP+LDA on BNCI2014_001 (LeftRightImagery): 0.824 +/- 0.213 | n_subjects=3 | metric=accuracy | backend=moabb

Make: extend to a third pipeline#

Mini-project. Add a third pipeline to pipelines: a StandardScaler on flattened trials plus a one-hidden-layer MLPClassifier. Re-run process() and append the new rows to per_subject_results. The figure helper auto-pivots the long-format frame, so passing pipeline_b="MLP" swaps which pipeline lands in the orange bars without other changes.

Wrap-up#

We took an EEGDashDataset over ds002718, extracted the (y, metadata) MOABB splitters expect through braindecode.datasets.BaseConcatDataset.get_metadata(), and ran a CrossSessionEvaluation on BNCI2014_001 with two CSP-based pipelines. The result is one mean +/- std summary plus a per-subject panel that flags which subjects pull the average down. The same machinery extends to CrossSubjectEvaluation and to any paradigm-compatible MOABB dataset.

Try it yourself#

  • Switch to WithinSessionEvaluation. The per-fold variance shrinks because the splits stay inside one session; the headline number is the upper bound on what a more honest cross-subject evaluation can produce.

  • Replace CSP with the eight-component variant (n_components=8). Predict before running: does the gap between CSP+LDA and CSP+LR widen or shrink?

  • Run braindecode.datasets.BaseConcatDataset.get_metadata() on the windowed dataset from plot_02. Confirm the metadata frame has one row per window, not one per record.

References#

See References for the centralised bibliography of papers cited above. Add or amend an entry once in docs/source/refs.bib; every tutorial inherits the update.

Total running time of the script: (0 minutes 29.290 seconds)
