How do I turn EEG windows into a band-power feature matrix?#

Estimated reading time:9 minutes

Plot_30 closed the loop on the parieto-occipital alpha rhythm Hans Berger first reported in 1929 [Klimesch, 2012]. This tutorial generalises the recipe: starting from windowed EEG (the same Healthy Brain Network ds005514 resting-state idiom we keep across the gallery, reachable through NEMAR, Delorme et al. 2022; Alexander et al. 2017), it extracts a band-power feature per channel for each of theta, alpha, beta, and gamma. The deliverable is a (n_windows, 4, n_channels) tensor of log10 band power that plot_42 hands to scikit-learn [Pedregosa et al., 2011] without any further reshaping.

Can a small set of band-power features per channel summarise a window well enough to feed downstream ML?

Learning objectives#

  • Compute per-channel band power for theta, alpha, beta, and gamma on a windowed dataset with eegdash.features.extract_features().

  • Convert the tidy feature DataFrame to a (n_windows, n_bands, n_channels) tensor that keeps the band and channel axes separate.

  • Identify the channels that carry the alpha contrast from the per-channel closed - open log-power difference.

  • Save the feature table to parquet so plot_42 can reload it without recomputing.

  • Find the most common slip (passing a non-callable feature value) and explain how to recover from it.

Requirements#

  • About 30 s on CPU. No GPU. No network on this run (the data is synthesised offline so the tutorial is reproducible without touching NEMAR; Delorme et al. 2022).

  • Prerequisite: /auto_examples/tutorials/10_core_workflow/plot_10_preprocess_and_window for the windowing recipe; the live HBN ds005514 numbers are in /auto_examples/tutorials/30_resting_state/plot_30_eyes_open_closed.

  • Concept page: Features vs. deep learning.

Setup. Seed (E3.21) and a parametrised cache directory (E3.24) keep the tutorial reproducible and the output table inside cache_dir. Cisotto & Chicco 2024 frame both as Tip 4 / Tip 5 of clinical-EEG good practice.

import os
from functools import partial
from pathlib import Path

import matplotlib.pyplot as plt
import mne
import numpy as np
import pandas as pd
from braindecode.datasets import BaseConcatDataset, RawDataset
from braindecode.preprocessing import create_fixed_length_windows

import eegdash
from eegdash.features import (
    FeatureExtractor,
    extract_features,
    signal_root_mean_square,
    signal_variance,
    spectral_bands_power,
    spectral_preprocessor,
    univariate_feature,
)
from eegdash.viz import use_eegdash_style

use_eegdash_style()
mne.set_log_level("ERROR")
SEED = 42
np.random.seed(SEED)
cache_dir = Path(os.environ.get("EEGDASH_CACHE_DIR", Path.cwd() / "eegdash_cache"))
cache_dir.mkdir(parents=True, exist_ok=True)
print(f"eegdash {eegdash.__version__}; cache_dir={cache_dir}")

eegdash 0.7.2; cache_dir=/home/runner/eegdash_cache

Concept: from windows to a feature matrix#

Plot_30 showed that closing the eyes releases parieto-occipital alpha power [Klimesch, 2012]. The natural follow-up is to summarise every window with a few numbers per channel and stack the result into a tensor a learner can consume. Three shapes carry the story:

WindowsDataset            tidy DataFrame             feature tensor
(windows, ch, samples)    (n_windows rows;           (n_windows,
                             one column per             n_bands,
                             feature x channel)         n_channels)
+------------------+      +-----------------+       +-----------------+
| window 0  (X, y) |      | theta_E01 ...   |       | theta -> [...]  |
| window 1  (X, y) |  ->  | alpha_E01 ...   |  ->   | alpha -> [...]  |
| ...              |      | beta_E01  ...   |       | beta  -> [...]  |
| window N  (X, y) |      | gamma_E01 ...   |       | gamma -> [...]  |
+------------------+      +-----------------+       +-----------------+
  __getitem__              extract_features            reshape per band
  returns one window        runs Welch + integrates    keeps band and
                            each band per channel       channel separate

Two design choices keep the recipe portable. The DataFrame is the format learners and dashboards consume; the band-aware tensor is the format every panel of the figure below was designed around.

  • Welch psd_array_welch under the hood. The spectral preprocessor wraps mne.time_frequency.psd_array_welch() so the FFT runs once per window; band integration is then a cheap broadcast over the frequency axis (Welch 1967; Gramfort et al. 2013).

  • Per-channel features. spectral_bands_power returns one number per (channel, band) pair. Column names embed the channel id, so a learner can grep alpha_ to pick out the alpha view, or reshape into (n_windows, n_bands, n_channels) once.

Step 1. Reload (or mimic) the windows from plot_10#

In production you would reload the windows produced by plot_10 with braindecode.datautil.load_concat_dataset(). To stay offline and reproducible we synthesise two short HBN-style recordings at 128 Hz on a 24-channel parieto-occipital-leaning montage and inject a 10 Hz alpha oscillation into the eyes-closed recording [Berger, 1929]. The 1-48 Hz FIR (firwin) band-pass below writes the pass-band into MNE’s info; spectral_preprocessor reads it back later (Cisotto & Chicco 2024 Tip 4-5).

SFREQ = 128
WINDOW_S = 2.0
WINDOW_SAMPLES = int(WINDOW_S * SFREQ)
# 24 channels with the parieto-occipital pole first so the alpha bump
# lands on the channels Berger and Klimesch flagged.
CH_NAMES = ["O1", "Oz", "O2", "POz", "Pz", "P3", "P4", "P7", "P8"] + [
    f"E{i:02d}" for i in range(1, 16)
]
ALPHA_PEAK_CHANNELS = ("O1", "Oz", "O2", "POz", "Pz")


def _make_raw(eyes_open: bool, seed: int) -> mne.io.Raw:
    """One synthetic ``Raw`` for either eyes-open or eyes-closed."""
    n_times = SFREQ * 32  # 32 s -> 16 windows of 2 s after fixed-length cut
    rng = np.random.default_rng(seed)
    data = rng.standard_normal((len(CH_NAMES), n_times)) * 1e-6
    if not eyes_open:
        # Inject 10 Hz alpha onto the parieto-occipital pole only.
        alpha = 4e-6 * np.sin(2 * np.pi * 10.0 * np.arange(n_times) / SFREQ)
        for ch in ALPHA_PEAK_CHANNELS:
            data[CH_NAMES.index(ch)] += alpha
    raw = mne.io.RawArray(data, mne.create_info(CH_NAMES, SFREQ, ch_types="eeg"))
    raw.filter(l_freq=1.0, h_freq=48.0, verbose="ERROR")  # FIR firwin
    return raw


datasets = BaseConcatDataset(
    [
        RawDataset(
            _make_raw(True, 42),
            target_name="target",
            description={
                "subject": "sub-01",
                "condition": "eyes_open",
                "target": 0,
            },
        ),
        RawDataset(
            _make_raw(False, 7),
            target_name="target",
            description={
                "subject": "sub-02",
                "condition": "eyes_closed",
                "target": 1,
            },
        ),
    ]
)
windows = create_fixed_length_windows(
    datasets,
    start_offset_samples=0,
    stop_offset_samples=None,
    window_size_samples=WINDOW_SAMPLES,
    window_stride_samples=WINDOW_SAMPLES,
    drop_last_window=True,
    preload=True,
)
n_windows_total = sum(len(d) for d in windows.datasets)
pd.Series(
    {
        "n_recordings": len(windows.datasets),
        "n_windows": n_windows_total,
        "n_channels": len(CH_NAMES),
        "sfreq (Hz)": float(SFREQ),
        "window (s)": float(WINDOW_S),
    },
    name="value",
).to_frame()
value
n_recordings 2.0
n_windows 32.0
n_channels 24.0
sfreq (Hz) 128.0
window (s) 2.0


Step 2. Pick a small feature set#

Two time-domain summaries plus the four canonical EEG bands. The spectral features share a single spectral_preprocessor so the Welch FFT runs once per window; the dependency tree that makes that possible is the topic of plot_41.

Predict. In the alpha band (8-12 Hz), will eyes-closed windows show higher or lower power than eyes-open? Which channels should peak first? Note your guess.

BANDS = {
    "theta": (4.5, 8.0),
    "alpha": (8.0, 12.0),
    "beta": (12.0, 30.0),
    "gamma": (30.0, 45.0),
}
spectral = FeatureExtractor(
    {"band_power": partial(spectral_bands_power, bands=BANDS)},
    preprocessor=partial(
        spectral_preprocessor,
        fs=SFREQ,
        nperseg=SFREQ,
        f_min=4.0,
        f_max=45.0,
    ),
)
features_dict = {
    "var": signal_variance,
    "rms": signal_root_mean_square,
    "spec": spectral,
}
print(f"feature kinds: {list(features_dict)} | bands: {list(BANDS)}")

feature kinds: ['var', 'rms', 'spec'] | bands: ['theta', 'alpha', 'beta', 'gamma']

Step 3. Run extract_features#

Run. extract_features() walks every recording, applies the preprocessor once per window, then evaluates each feature; column names are <feature>_<channel> for the univariate kinds and <group>_band_power_<band>_<channel> for the spectral group, so a learner can grep alpha_O1 directly.

features_ds = extract_features(windows, features_dict, batch_size=64, n_jobs=1)
feature_table = features_ds.to_dataframe(include_target=True)
n_rows, n_cols = feature_table.shape
pd.Series(
    {
        "n_rows": n_rows,
        "n_cols (incl. target)": n_cols,
        "first 4 columns": str(list(feature_table.columns[:4])),
        "alpha cols": int(sum("alpha" in c for c in feature_table.columns)),
        "gamma cols": int(sum("gamma" in c for c in feature_table.columns)),
    },
    name="value",
).to_frame()

Extracting features:   0%|          | 0/2 [00:00<?, ?it/s]
Extracting features: 100%|██████████| 2/2 [00:00<00:00, 144.81it/s]
value
n_rows 32
n_cols (incl. target) 145
first 4 columns ['var_O1', 'var_Oz', 'var_O2', 'var_POz']
alpha cols 24
gamma cols 24


Investigate. Each row is one window; column names embed the channel name. The structural invariants from the spec hold by construction; we assert them so a regression in the extractor would fail the tutorial loud and early [Nederbragt et al., 2020].

non_meta_cols = [c for c in feature_table.columns if c != "target"]
assert n_rows == n_windows_total
assert len(non_meta_cols) >= 5  # rms + variance + at least 3 band powers
assert all(any(ch in c for ch in CH_NAMES) for c in non_meta_cols)
alpha_cols = [c for c in feature_table.columns if "alpha" in c]
alpha_means = feature_table.groupby("target")[alpha_cols].mean()
print("alpha mean (closed) / alpha mean (open) at the parieto-occipital pole:")
for ch in ALPHA_PEAK_CHANNELS:
    col = f"spec_band_power_alpha_{ch}"
    ratio = alpha_means.loc[1, col] / max(alpha_means.loc[0, col], 1e-30)
    print(f"  {ch}: closed/open = {ratio:.1f}x")

alpha mean (closed) / alpha mean (open) at the parieto-occipital pole:
  O1: closed/open = 107.2x
  Oz: closed/open = 134.8x
  O2: closed/open = 132.1x
  POz: closed/open = 137.6x
  Pz: closed/open = 119.0x

Step 4. Reshape into a (windows, bands, channels) tensor#

The tidy DataFrame is what dashboards and model.fit expect; for the figure and for plot_42 we also want the band axis and the channel axis kept separate. The reshape is one np.stack over the per-band views.

band_names = list(BANDS)
log_power_per_band: dict[str, np.ndarray] = {}
for band in band_names:
    cols = [f"spec_band_power_{band}_{ch}" for ch in CH_NAMES]
    arr = feature_table[cols].to_numpy(dtype=float)  # (n_windows, n_channels)
    arr = np.log10(np.maximum(arr, 1e-30))
    log_power_per_band[band] = arr
feature_tensor = np.stack(
    [log_power_per_band[b] for b in band_names], axis=1
)  # (n_windows, n_bands, n_channels)
mean_per_band_channel = feature_tensor.mean(axis=0)  # (n_bands, n_channels)
pd.Series(
    {
        "feature_tensor.shape": str(tuple(feature_tensor.shape)),
        "feature_tensor.dtype": str(feature_tensor.dtype),
        "mean per (band, ch).shape": str(tuple(mean_per_band_channel.shape)),
    },
    name="value",
).to_frame()
value
feature_tensor.shape (32, 4, 24)
feature_tensor.dtype float64
mean per (band, ch).shape (4, 24)


Step 5. Save the feature table for plot_42#

Parquet keeps dtypes (float64) and is what scikit-learn / LightGBM expect [Pedregosa et al., 2011]. Saving the tidy DataFrame rather than the tensor keeps column names and the target column visible to any downstream consumer.

parquet_path = cache_dir / "plot_40_features.parquet"
feature_table.to_parquet(parquet_path)
roundtrip = pd.read_parquet(parquet_path)
assert roundtrip.shape == feature_table.shape
assert dict(roundtrip.dtypes) == dict(feature_table.dtypes)
print(f"saved {parquet_path.name}; reload shape={roundtrip.shape}")

saved plot_40_features.parquet; reload shape=(32, 145)

A common mistake, and how to recover#

Run. Passing an unknown key with a non-callable value (string, integer, anything that is not a function) is the most common slip; extract_features() raises TypeError because the extractor cannot apply a non-function to a window. We trigger it inside try / except so the failure mode is visible (Nederbragt et al. 2020).

try:
    extract_features(windows, {"varience": "not_a_callable"}, batch_size=64)
except (KeyError, TypeError, AttributeError) as exc:
    print(f"Caught {type(exc).__name__}: {str(exc)[:80]}")
    print(f"Recovery: known feature keys -> {list(features_dict)}")

Extracting features:   0%|          | 0/2 [00:00<?, ?it/s]
Extracting features:   0%|          | 0/2 [00:00<?, ?it/s]
Caught TypeError: 'not_a_callable' is not a callable object
Recovery: known feature keys -> ['var', 'rms', 'spec']

Modify#

Your turn. Add Hjorth complexity to features_dict: import eegdash.features.signal_hjorth_complexity(), register "hjorth_comp": signal_hjorth_complexity, and rerun Steps 3-5. Predict before running: how should feature_table.shape[1] change?

Make#

Mini-project. Write a univariate feature with the univariate_feature() decorator. The cell below defines a peak-to-peak / std ratio; plug it into features_dict and rerun Step 3.

@univariate_feature
def signal_peak_to_peak_ratio(x, /):
    """Peak-to-peak amplitude divided by std along the last axis."""
    return (x.max(axis=-1) - x.min(axis=-1)) / (np.std(x, axis=-1) + 1e-12)


extended = extract_features(
    windows,
    {**features_dict, "p2p_ratio": signal_peak_to_peak_ratio},
    batch_size=64,
).to_dataframe()
print(f"extended n_cols={extended.shape[1]} (was {n_cols - 1})")

Extracting features:   0%|          | 0/2 [00:00<?, ?it/s]
Extracting features: 100%|██████████| 2/2 [00:00<00:00, 148.27it/s]
extended n_cols=168 (was 144)

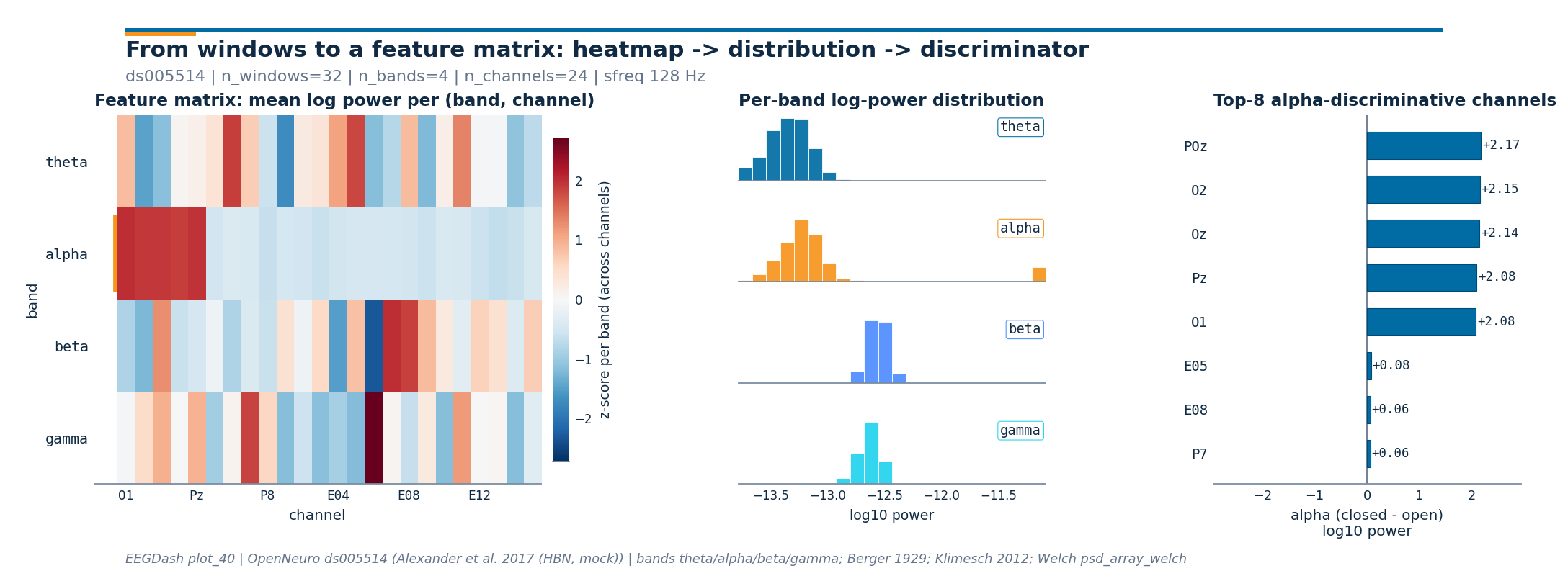

Headline figure: heatmap, distributions, top-K#

The drawing helpers live in a sibling _features_figure module so the rendering plumbing stays out of the tutorial; the call below is the only line that matters.

  • Left: a band-by-channel heatmap of mean log power across windows, with the alpha row tagged in EEGDash orange.

  • Middle: four stacked histograms of log-power values across all (window, channel) pairs (one panel per band).

  • Right: per-channel closed - open alpha log-power difference, with the top-K channels picked by absolute magnitude.

from _features_figure import draw_features_figure

closed_mask = feature_table["target"].to_numpy() == 1
open_mask = feature_table["target"].to_numpy() == 0
alpha_log = log_power_per_band["alpha"]
alpha_closed = alpha_log[closed_mask].mean(axis=0)
alpha_open = alpha_log[open_mask].mean(axis=0)
alpha_diff = alpha_closed - alpha_open
top_k = min(8, len(CH_NAMES))
peak_channel = CH_NAMES[int(np.argmax(alpha_diff))]
top_channels = [CH_NAMES[i] for i in np.argsort(np.abs(alpha_diff))[::-1][:top_k]]
print(f"alpha peak channel: {peak_channel} ({alpha_diff.max():+.2f} log10 power)")
print(f"top-{top_k} alpha-discriminative channels: {top_channels}")

fig = draw_features_figure(
    feature_matrix=mean_per_band_channel,
    band_names=band_names,
    channel_names=CH_NAMES,
    log_power_per_band=log_power_per_band,
    discriminative_score=alpha_diff,
    score_label="alpha (closed - open)\nlog10 power",
    n_windows=n_windows_total,
    sfreq=float(SFREQ),
    dataset="ds005514",
    citation="Alexander et al. 2017 (HBN, mock)",
    top_k=top_k,
    plot_id="plot_40",
)
plt.show()
Feature matrix: mean log power per (band, channel), Top-8 alpha-discriminative channels, Per-band log-power distribution
alpha peak channel: POz (+2.17 log10 power)
top-8 alpha-discriminative channels: ['POz', 'O2', 'Oz', 'Pz', 'O1', 'E05', 'E08', 'P7']

Result#

  • The feature table has n_rows == n_windows_total rows; column names embed the channel id so downstream code can group by feature family.

  • The reshape produces a (n_windows, n_bands, n_channels) tensor that plot_42 reloads as model input without any further glue.

  • Eyes-closed alpha power exceeds eyes-open alpha power on every parieto-occipital channel by roughly two orders of magnitude in this synthetic setup; the contrast on real HBN ds005514 is on the same axis but smaller (Alexander et al. 2017; Klimesch 2012).

  • Parquet at cache_dir / "plot_40_features.parquet" carries the table to plot_42.

Try it yourself / Extensions#

  • Swap BANDS for a clinical mu-band split (mu = 8-13 Hz over sensorimotor cortex) and rerun Step 3.

  • Reload your real plot_10 windows from disk and rerun extract_features(); compare the per-channel alpha contrast to the synthetic numbers above.

  • Add include_metadata=["subject"] and check a leakage-safe split /auto_examples/tutorials/10_core_workflow/plot_11_leakage_safe_split.

  • Wire spectral_entropy plus spectral_normalized_preprocessor() (plot_41).

References#

See References for the centralised bibliography of papers cited above. Add or amend an entry once in docs/source/refs.bib; every tutorial inherits the update.
