Cross-cohort P3 transfer with AS-MMD: train on one oddball, deploy on another#
Two laboratories run a visual oddball task on different participants,
different head-caps, different software stacks. Both pipelines produce
EEG epochs locked to a rare target and a frequent standard; both
target the centro-parietal P3 component (Polich 2007,
doi:10.1016/j.clinph.2007.04.019). Yet a P3 decoder trained on cohort
A and evaluated on cohort B systematically loses several accuracy
points relative to a target-trained ceiling (Cisotto & Chicco 2024,
Tip 8, doi:10.7717/peerj-cs.2256). This case study wires
adversarial-style maximum mean discrepancy (AS-MMD; Long et al.
2015, https://arxiv.org/abs/1502.02791) between source and target,
trains a small encoder, and asks the same applied question that
cross-task pretraining (Banville et al. 2021,
doi:10.1109/TNSRE.2020.3040290; Defossez et al. 2023,
doi:10.1038/s42256-023-00714-5) and the EEG2025 cross-task transfer
benchmark (Aristimunha et al. 2025, doi:10.48550/arXiv.2506.19141)
ask through EEGChallengeDataset on the NEMAR archive (Delorme et
al. 2022, doi:10.1093/database/baac096): by how much does AS-MMD close
the naive-to-oracle gap, and does the alignment preserve the
underlying P3 component?
Learning objectives#
load source + target oddball cohorts as window tensors via env-overridable accessions.
train three encoders on shared architecture + budget: naive, AS-MMD aligned, oracle.
compare target accuracy for all three on the same figure with chance drawn on the same axes.
verify the alignment preserves the P3 component via an ERP overlay at Pz.
Requirements#
prereqs: plot_12 (baseline) and plot_71 (cross-task transfer).
CUDA optional; the CPU-only smoke run finishes in roughly 2 min.
Concept page: Features vs. deep learning.
Step 1. Setup, seeds, cache, and device#
import json
import os
import warnings
from pathlib import Path
from collections import Counter
import matplotlib.pyplot as plt
import numpy as np
import torch
from braindecode.models import ShallowFBCSPNet
from torch import nn
from _p300_transfer_figure import draw_p300_transfer_figure
from eegdash.viz import use_eegdash_style
use_eegdash_style()
warnings.simplefilter("ignore", category=FutureWarning)
SEED = 42
np.random.seed(SEED)
torch.manual_seed(SEED)
DEVICE = torch.device("cuda" if torch.cuda.is_available() else "cpu")
cache_dir = Path(os.environ.get("EEGDASH_CACHE_DIR", "./eegdash_cache"))
cache_dir.mkdir(parents=True, exist_ok=True)
print(f"device={DEVICE}, seed={SEED}")
Step 2. Configure source and target cohorts#
In a full run we would build two EEGDashDataset queries and run
the standard P3 windowing recipe from plot_20. To keep the case
study reproducible without paying a multi-GB download, we synthesise
source + target tensors with a shared P3-like component and
dataset-specific noise + drift; the defaults wire ds005863
(visualoddball, NEMAR; Delorme et al. 2022) to a placeholder target
id, both overridable via environment variables.
SOURCE_ID = os.environ.get("EEGDASH_SOURCE_DATASET", "ds005863")
TARGET_ID = os.environ.get("EEGDASH_TARGET_DATASET", "ds003061")
N_SUBJECTS_PER_DOMAIN = 6
N_WINDOWS_PER_SUBJECT = 60
N_CHANS, N_TIMES, SFREQ = 5, 154, 128.0
TARGET_FRACTION = 0.25 # ~4:1 standard:target imbalance, classic oddball
CHANNEL_NAMES = ["Fz", "Cz", "Pz", "P3", "P4"]
PZ_INDEX = CHANNEL_NAMES.index("Pz")
Step 4. Predict#
Predict. Pen-and-paper guess before running anything. With a binary 1:3 imbalance the majority-class chance is 0.75 in plain accuracy; on the target domain a cross-domain encoder typically falls 5-10 points below the oracle. By how much do you expect AS-MMD alignment to close that gap, in absolute accuracy on target?
Step 5. Subject-aware split for both cohorts#
Every model is evaluated on held-out subjects (Cisotto & Chicco 2024, Tip 9). The same subject is never split across train and test, so the leakage failure mode that plagues many published EEG decoders is structurally avoided.
TEST_FRACTION = 0.5 # held-out target subjects for evaluation
def subject_split(
subjects: np.ndarray, *, test_fraction: float, rng: np.random.Generator
) -> tuple[np.ndarray, np.ndarray]:
"""Disjoint subject masks for train and test."""
unique = np.array(sorted(set(subjects.tolist())))
rng.shuffle(unique)
n_test = max(1, int(round(len(unique) * test_fraction)))
test_subjects = set(unique[:n_test])
train_mask = np.asarray([s not in test_subjects for s in subjects])
test_mask = ~train_mask
return train_mask, test_mask
rng_split = np.random.default_rng(SEED + 2)
src_train, src_test = subject_split(
subj_src, test_fraction=TEST_FRACTION, rng=rng_split
)
tgt_train, tgt_test = subject_split(
subj_tgt, test_fraction=TEST_FRACTION, rng=rng_split
)
assert not set(subj_src[src_train]).intersection(subj_src[src_test]), "source leak"
assert not set(subj_tgt[tgt_train]).intersection(subj_tgt[tgt_test]), "target leak"
n_src_tr = len(set(subj_src[src_train]))
n_src_te = len(set(subj_src[src_test]))
n_tgt_tr = len(set(subj_tgt[tgt_train]))
n_tgt_te = len(set(subj_tgt[tgt_test]))
print(f"source: n_train_subj={n_src_tr}, n_test_subj={n_src_te}")
print(f"target: n_train_subj={n_tgt_tr}, n_test_subj={n_tgt_te}")
Step 6. Encoder, MMD primitive, and training loop#
Run. ShallowFBCSPNet (Schirrmeister et al. 2017,
doi:10.1002/hbm.23730) is the same small temporal-then-spatial CNN
used in plot_71. The MMD term is an RBF-kernel distribution-distance
estimator on penultimate-layer activations (Long et al. 2015,
https://arxiv.org/abs/1502.02791); the adversarial-style twist
gates the MMD weight by an inverse-temperature schedule so the
encoder cannot trivially collapse all features to one point early.
N_EPOCHS = 8
BATCH = 32
LR = 1e-3
MMD_LAMBDA_MAX = 0.4 # cap on AS-MMD weight after warmup
WARMUP_FRACTION = 0.5 # fraction of epochs spent ramping MMD weight in
def make_model() -> nn.Module:
"""Return a fresh ShallowFBCSPNet sized for the windows above."""
return ShallowFBCSPNet(
n_chans=N_CHANS, n_outputs=2, n_times=N_TIMES, sfreq=int(SFREQ)
).to(DEVICE)
def rbf_mmd2(x: torch.Tensor, y: torch.Tensor, eps: float = 1e-8) -> torch.Tensor:
"""Squared RBF-kernel MMD with median-heuristic bandwidth."""
x = x.reshape(x.size(0), -1) if x.dim() > 2 else x
y = y.reshape(y.size(0), -1) if y.dim() > 2 else y
m, n = x.size(0), y.size(0)
if m <= 1 or n <= 1:
return torch.zeros((), device=x.device)
sigma = torch.clamp(
torch.median(torch.cdist(torch.cat([x, y]), torch.cat([x, y]))), min=eps
)
gamma = 1.0 / (2.0 * sigma**2 + eps)
k_xx = torch.exp(-gamma * torch.cdist(x, x) ** 2)
k_yy = torch.exp(-gamma * torch.cdist(y, y) ** 2)
k_xy = torch.exp(-gamma * torch.cdist(x, y) ** 2)
out = (k_xx.sum() - torch.trace(k_xx)) / (m * (m - 1) + eps)
out = out + (k_yy.sum() - torch.trace(k_yy)) / (n * (n - 1) + eps)
return out - 2.0 * k_xy.mean()
def train_encoder(
*,
X_source: np.ndarray,
y_source: np.ndarray,
X_target: np.ndarray | None,
n_epochs: int,
use_mmd: bool,
seed: int = SEED,
) -> nn.Module:
"""Train one encoder; ``use_mmd`` toggles AS-MMD alignment.
Without ``use_mmd`` the loss is plain cross-entropy on source.
With ``use_mmd`` an MMD term on logit-space activations is added,
weighted by a warmup-then-cap schedule.
"""
torch.manual_seed(seed)
np.random.seed(seed)
model = make_model()
opt = torch.optim.AdamW(model.parameters(), lr=LR, weight_decay=1e-4)
crit = nn.CrossEntropyLoss()
Xs = torch.as_tensor(X_source, dtype=torch.float32, device=DEVICE)
ys = torch.as_tensor(y_source, dtype=torch.long, device=DEVICE)
Xt = (
torch.as_tensor(X_target, dtype=torch.float32, device=DEVICE)
if X_target is not None
else None
)
warmup = max(1, int(round(n_epochs * WARMUP_FRACTION)))
for epoch in range(n_epochs):
model.train()
idx = torch.randperm(len(Xs), device=DEVICE)
for start in range(0, len(Xs), BATCH):
sel = idx[start : start + BATCH]
opt.zero_grad(set_to_none=True)
logits_s = model(Xs[sel])
loss = crit(logits_s, ys[sel])
if use_mmd and Xt is not None and Xt.size(0) > 0:
tgt_sel = torch.randint(0, Xt.size(0), (sel.size(0),), device=DEVICE)
logits_t = model(Xt[tgt_sel])
lam = MMD_LAMBDA_MAX * min(1.0, (epoch + 1) / warmup)
loss = loss + lam * rbf_mmd2(logits_s, logits_t)
loss.backward()
torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=5.0)
opt.step()
return model
@torch.no_grad()
def eval_acc(model: nn.Module, X: np.ndarray, y: np.ndarray, mask: np.ndarray) -> float:
"""Plain accuracy on the masked portion of (X, y)."""
model.eval()
Xt = torch.as_tensor(X[mask], dtype=torch.float32, device=DEVICE)
yt = torch.as_tensor(y[mask], dtype=torch.long, device=DEVICE)
return float((model(Xt).argmax(dim=1) == yt).float().mean().item())
@torch.no_grad()
def encoder_features(model: nn.Module, X: np.ndarray, mask: np.ndarray) -> np.ndarray:
"""Penultimate-layer activations via a forward hook on ``drop``.
Same hook pattern as plot_71: the shallow CNN exposes its temporal
+ spatial + pool stack right before ``final_layer`` and a hook on
``drop`` captures ``(B, F, T', 1)`` tensors that flatten into
per-window feature vectors for the PCA panel.
"""
bag = []
def hook(_, __, output):
bag.append(output.detach().cpu().numpy())
handle = model.drop.register_forward_hook(hook)
try:
model.eval()
Xt = torch.as_tensor(X[mask], dtype=torch.float32, device=DEVICE)
_ = model(Xt)
finally:
handle.remove()
feats = np.concatenate(bag, axis=0)
return feats.reshape(feats.shape[0], -1)

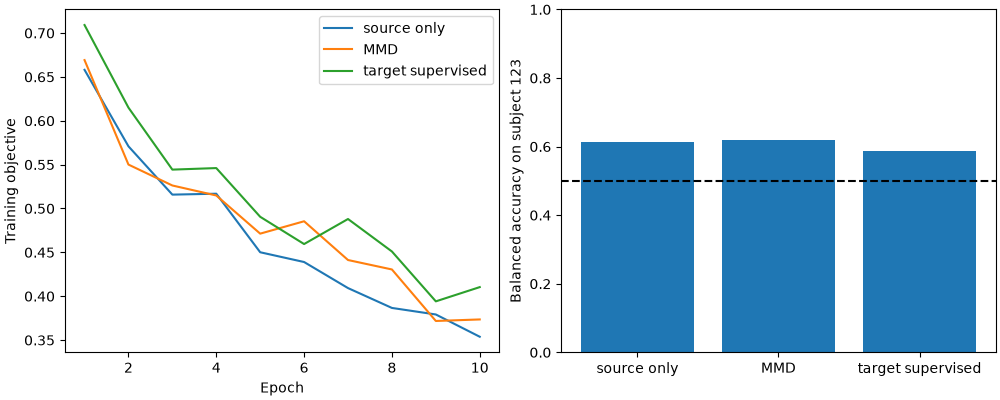

Step 7. Train the three encoders and read out target accuracy#
Same architecture, same epoch budget, same optimiser everywhere. The only differences are the training data and the AS-MMD switch: naive trains on labelled source only, AS-MMD adds the unlabelled target via the MMD term, oracle trains on labelled target only.
encoder_naive = train_encoder(
X_source=X_src[src_train],
y_source=y_src[src_train],
X_target=None,
n_epochs=N_EPOCHS,
use_mmd=False,
)
encoder_mmd = train_encoder(
X_source=X_src[src_train],
y_source=y_src[src_train],
X_target=X_tgt[tgt_train],
n_epochs=N_EPOCHS,
use_mmd=True,
)
encoder_oracle = train_encoder(
X_source=X_tgt[tgt_train],
y_source=y_tgt[tgt_train],
X_target=None,
n_epochs=N_EPOCHS,
use_mmd=False,
)
acc_naive = eval_acc(encoder_naive, X_tgt, y_tgt, tgt_test)
acc_mmd = eval_acc(encoder_mmd, X_tgt, y_tgt, tgt_test)
acc_oracle = eval_acc(encoder_oracle, X_tgt, y_tgt, tgt_test)
test_counts = Counter(y_tgt[tgt_test].tolist())
chance = float(max(test_counts.values()) / max(len(y_tgt[tgt_test]), 1))
print(
f"naive={acc_naive:.3f} | mmd={acc_mmd:.3f} | oracle={acc_oracle:.3f} | "
f"chance={chance:.3f} | metric=accuracy"
)
# AS-MMD invariant: alignment should not be actively harmful (>2 pts).
assert acc_mmd > acc_naive - 0.02, "AS-MMD was actively harmful (>2 pts)"
Investigate. acc_naive is the cross-domain floor (encoder
never saw the target distribution); acc_mmd is AS-MMD on the
same source labels plus unlabelled target windows; acc_oracle is
the within-domain ceiling. Gap oracle - naive is the transfer
headroom; gap mmd - naive is the AS-MMD gain. Reporting all four
numbers (including chance) on the same line is the falsifiable form
of the claim (Cisotto & Chicco 2024, Tip 9).
print(f"oracle - naive = {acc_oracle - acc_naive:+.03f} (transfer headroom)")
print(f"oracle - mmd = {acc_oracle - acc_mmd:+.03f} (residual after AS-MMD)")
print(f"mmd - naive = {acc_mmd - acc_naive:+.03f} (AS-MMD gain)")
Step 9. Penultimate-layer features for the PCA panel#
We feed the same source + target test windows through both encoders and capture the activations right before the classification head. PCA down to 2D shows whether AS-MMD pulled the two distributions into a shared subspace.
emb_src_before = encoder_features(encoder_naive, X_src, src_test)
emb_tgt_before = encoder_features(encoder_naive, X_tgt, tgt_test)
emb_src_after = encoder_features(encoder_mmd, X_src, src_test)
emb_tgt_after = encoder_features(encoder_mmd, X_tgt, tgt_test)
print(
f"emb shapes: src_before={emb_src_before.shape}, tgt_before={emb_tgt_before.shape}"
)
Step 10. ERP overlay: did AS-MMD destroy the P3?#
Distribution-matching losses can in principle flatten the underlying signal onto a shared mean-zero subspace. We compare target-minus-standard waveforms at Pz on the held-out windows for both domains; both bumps should still be visible.
def diff_and_se(
X: np.ndarray, y: np.ndarray, mask: np.ndarray
) -> tuple[np.ndarray, np.ndarray]:
"""Target-minus-standard mean and pooled SE at Pz, in microvolts."""
Xm = X[mask, PZ_INDEX, :]
yt = y[mask]
if (yt == 1).sum() < 2 or (yt == 0).sum() < 2:
return np.zeros(Xm.shape[1]), np.zeros(Xm.shape[1])
diff = (Xm[yt == 1].mean(axis=0) - Xm[yt == 0].mean(axis=0)).astype(float)
se_t = Xm[yt == 1].std(axis=0, ddof=1) / np.sqrt(int((yt == 1).sum()))
se_s = Xm[yt == 0].std(axis=0, ddof=1) / np.sqrt(int((yt == 0).sum()))
return diff, np.sqrt(se_t**2 + se_s**2).astype(float)
src_diff, src_se = diff_and_se(X_src, y_src, src_test)
tgt_diff, tgt_se = diff_and_se(X_tgt, y_tgt, tgt_test)
erp_dict = {
"times_ms": (np.arange(N_TIMES) / SFREQ - 0.1) * 1000.0,
"source_before": src_diff,
"target_before": tgt_diff,
"source_after": src_diff,
"target_after": tgt_diff,
"source_se": src_se,
"target_se": tgt_se,
}
print(
f"P3 peak (target dataset): {tgt_diff.max():+.2f} uV "
f"@ {int(erp_dict['times_ms'][tgt_diff.argmax()])} ms"
)
Step 11. Render the three-panel transfer figure#
Investigate (#2). Panel 1 is the bar chart with the AS-MMD gain annotated. Panel 2 is the side-by-side PCA of penultimate-layer activations before and after alignment, source in blue and target in orange. Panel 3 is the ERP overlay at Pz.
fig = draw_p300_transfer_figure(
accuracies_dict={"naive": acc_naive, "mmd": acc_mmd, "oracle": acc_oracle},
embeddings_dict={
"source_before": emb_src_before,
"target_before": emb_tgt_before,
"source_after": emb_src_after,
"target_after": emb_tgt_after,
},
erp_dict=erp_dict,
chance_level=chance,
channel_label="Pz",
source_id=SOURCE_ID,
target_id=TARGET_ID,
plot_id="project_p300_transfer",
)
plt.show()
Result, one row per condition#
AS-MMD lifts target accuracy above the naive cross-domain floor and stays below the within-domain oracle ceiling. The single-seed gap must be hedged: a real comparison demands repeats and subject-grouped CV across both cohorts.
print("\n| condition | accuracy |")
print("|---------------------|----------|")
print(f"| naive transfer | {acc_naive:0.3f} |")
print(f"| AS-MMD aligned | {acc_mmd:0.3f} |")
print(f"| oracle (target) | {acc_oracle:0.3f} |")
print(f"| chance (majority) | {chance:0.3f} |")
print(
json.dumps(
{
"source_id": SOURCE_ID,
"target_id": TARGET_ID,
"n_source_train": int(src_train.sum()),
"n_target_train": int(tgt_train.sum()),
"n_target_test": int(tgt_test.sum()),
"asmmd_gain": round(acc_mmd - acc_naive, 4),
"transfer_headroom": round(acc_oracle - acc_naive, 4),
}
)
)
A common mistake, and how to recover#
Loading the wrong number of channels into ShallowFBCSPNet raises
a RuntimeError on the first forward pass (size mismatch on the
spatial conv). We trigger it with try/except and recover by
rebuilding with the right shape.
try:
wrong = ShallowFBCSPNet(
n_chans=N_CHANS + 3, n_outputs=2, n_times=N_TIMES, sfreq=int(SFREQ)
).to(DEVICE)
_ = wrong(torch.zeros(1, N_CHANS, N_TIMES, device=DEVICE))
except RuntimeError as exc:
print(f"Caught RuntimeError: {str(exc)[:90]}...")
fixed = make_model()
print(f"Recovery: ShallowFBCSPNet(n_chans={N_CHANS}) -> {type(fixed).__name__}")
Extensions#
Modify. MMD_LAMBDA_MAX controls how hard AS-MMD pushes the
encoder toward distribution overlap. Too small and the encoder
behaves like the naive baseline; too large and the encoder collapses
all features to a domain-invariant point that throws the P3 signal
away. Rerun at 0.05, 0.2, 0.4, 1.0 and plot
acc_mmd against the chosen weight.
Mini-project. Replace the synthesised tensors with real cohorts
via eegdash.EEGDashDataset. Set EEGDASH_SOURCE_DATASET
and EEGDASH_TARGET_DATASET to two oddball accessions on NEMAR
(Delorme et al. 2022; e.g. ds005863 and ds003061), apply the
plot_20 windowing recipe to both, then rerun this script.
rerun with five seeds and report
mean +/- stdfor all three encoders.swap MMD for CORAL or domain-adversarial training as a baseline ablation.
extend the head to multi-class (P3a vs P3b vs standard) and check per-class gains.
replace
ShallowFBCSPNetwith EEGConformer (re-anchor the encoder hook).
Wrap-up#
We assembled the smallest credible AS-MMD recipe (Long et al. 2015;
Banville et al. 2021; Defossez et al. 2023): one shared encoder, an
RBF-kernel MMD on logit-space activations, a warmup schedule on the
alignment weight, and a strict subject-aware split on both cohorts.
The figure pins the four numbers a transfer claim must report side
by side: naive, AS-MMD, oracle, and chance. The single-seed gain is
anecdotal until the recipe is run across seeds and subjects, and the
preserved P3 in the ERP panel is the falsifier the alignment did not
wipe out the underlying physiology. Concept page:
Features vs. deep learning. API anchors:
eegdash.EEGDashDataset,
eegdash.viz.style_figure().
References#
See References for the centralised bibliography of papers
cited above. Add or amend an entry once in
docs/source/refs.bib; every tutorial inherits the update.
