Split real windows without subject leakage

Estimated reading time:4 minutes

Compare measured random-trial and subject-disjoint assignments.

These real Nakanishi2015 SSVEP recordings are distributed as the processed nm000118 release (study). Filtering, downsampling and latency handling were already applied; do not shift the event onsets again. CPU is sufficient. Internet is needed for the first download; EEGDASH_CACHE_DIR keeps downloads across runs.

The explicit subset uses 3 participant(s), about 21.1 MB of signal files.

Before you start

Install EEGDash and its dependencies. Familiarity with tutorial 02’s window metadata is useful; the script does not need a saved dataset. The output is a pair of measured assignment tables and plots, not an accuracy comparison. Use it to choose the evaluation unit before fitting the baseline in tutorial 12.

import os
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from braindecode.preprocessing import create_windows_from_events

from eegdash import EEGDashDataset
from sklearn.model_selection import GroupShuffleSplit, train_test_split

1. Load and inspect the selected recordings

Three participants make the difference between row-level and group-level splitting visible while keeping acquisition small. The channel/rate checks ensure that all recordings could enter the same model; they do not make participants statistically interchangeable.

cache_dir = Path(os.environ.get("EEGDASH_CACHE_DIR", ".eegdash_cache"))
subjects = ["1", "2", "3"]
dataset = EEGDashDataset(
    cache_dir=cache_dir,
    dataset="nm000118",
    subject=subjects,
    session="0",
    run="0",
    task="ssvep",
    n_jobs=1,
)
assert len(dataset.datasets) == len(subjects)
print(dataset.description[["subject", "session", "run"]])
raw = dataset.datasets[0].raw
sfreq = raw.info["sfreq"]
channel_names = raw.ch_names
class_names = sorted(set(raw.annotations.description), key=float)
mapping = {name: index for index, name in enumerate(class_names)}
assert len(mapping) == 12
for recording in dataset.datasets:
    assert recording.raw.ch_names == channel_names
    assert recording.raw.info["sfreq"] == sfreq
    assert set(recording.raw.annotations.description) == set(mapping)
print(f"Channels: {channel_names}; sampling rate: {sfreq} Hz")
print("Observed stimulus frequencies (Hz):", class_names)

  subject session run
0       1       0   0
1       2       0   0
2       3       0   0

Downloading sub-2_ses-0_task-ssvep_run-0_eeg.set:   0%|          | 0.00/6.71M [00:00<?, ?B/s]
Downloading sub-2_ses-0_task-ssvep_run-0_eeg.set:   0%|          | 0.00/6.71M [00:00<?, ?B/s]
Downloading sub-2_ses-0_task-ssvep_run-0_eeg.set:  15%|█▍        | 1.00M/6.71M [00:00<00:04, 1.44MB/s]
Downloading sub-2_ses-0_task-ssvep_run-0_eeg.set:  45%|████▍     | 3.00M/6.71M [00:00<00:01, 3.45MB/s]
Downloading sub-2_ses-0_task-ssvep_run-0_eeg.set: 100%|██████████| 6.71M/6.71M [00:01<00:00, 6.13MB/s]
[09/11/26 17:43:17] INFO     HTTP Request: GET                   _client.py:1025
                             https://raw.githubusercontent.com/n
                             emarDatasets/nm000118/v1.0.2/sub-2/
                             ses-0/eeg/sub-2_ses-0_task-ssvep_ru
                             n-0_channels.tsv "HTTP/1.1 200 OK"
                    INFO     HTTP Request: GET                   _client.py:1025
                             https://raw.githubusercontent.com/n
                             emarDatasets/nm000118/v1.0.2/sub-2/
                             ses-0/eeg/sub-2_ses-0_task-ssvep_ru
                             n-0_events.tsv "HTTP/1.1 200 OK"
                    INFO     HTTP Request: GET                   _client.py:1025
                             https://raw.githubusercontent.com/n
                             emarDatasets/nm000118/v1.0.2/sub-2/
                             ses-0/eeg/sub-2_ses-0_task-ssvep_ru
                             n-0_events.json "HTTP/1.1 200 OK"
                    INFO     HTTP Request: GET                   _client.py:1025
                             https://raw.githubusercontent.com/n
                             emarDatasets/nm000118/v1.0.2/sub-2/
                             ses-0/eeg/sub-2_ses-0_task-ssvep_ru
                             n-0_eeg.json "HTTP/1.1 200 OK"

Downloading sub-3_ses-0_task-ssvep_run-0_eeg.set:   0%|          | 0.00/6.71M [00:00<?, ?B/s]
Downloading sub-3_ses-0_task-ssvep_run-0_eeg.set:   0%|          | 0.00/6.71M [00:00<?, ?B/s]
Downloading sub-3_ses-0_task-ssvep_run-0_eeg.set:  15%|█▍        | 1.00M/6.71M [00:00<00:04, 1.47MB/s]
Downloading sub-3_ses-0_task-ssvep_run-0_eeg.set:  45%|████▍     | 3.00M/6.71M [00:00<00:01, 3.55MB/s]
Downloading sub-3_ses-0_task-ssvep_run-0_eeg.set: 100%|██████████| 6.71M/6.71M [00:01<00:00, 6.55MB/s]
[09/11/26 17:43:19] INFO     HTTP Request: GET                   _client.py:1025
                             https://raw.githubusercontent.com/n
                             emarDatasets/nm000118/v1.0.2/sub-3/
                             ses-0/eeg/sub-3_ses-0_task-ssvep_ru
                             n-0_channels.tsv "HTTP/1.1 200 OK"
                    INFO     HTTP Request: GET                   _client.py:1025
                             https://raw.githubusercontent.com/n
                             emarDatasets/nm000118/v1.0.2/sub-3/
                             ses-0/eeg/sub-3_ses-0_task-ssvep_ru
                             n-0_events.tsv "HTTP/1.1 200 OK"
                    INFO     HTTP Request: GET                   _client.py:1025
                             https://raw.githubusercontent.com/n
                             emarDatasets/nm000118/v1.0.2/sub-3/
                             ses-0/eeg/sub-3_ses-0_task-ssvep_ru
                             n-0_events.json "HTTP/1.1 200 OK"
                    INFO     HTTP Request: GET                   _client.py:1025
                             https://raw.githubusercontent.com/n
                             emarDatasets/nm000118/v1.0.2/sub-3/
                             ses-0/eeg/sub-3_ses-0_task-ssvep_ru
                             n-0_eeg.json "HTTP/1.1 200 OK"
Channels: ['PO7', 'PO3', 'POz', 'PO4', 'PO8', 'O1', 'Oz', 'O2']; sampling rate: 256.0 Hz
Observed stimulus frequencies (Hz): ['9.25', '9.75', '10.25', '10.75', '11.25', '11.75', '12.25', '12.75', '13.25', '13.75', '14.25', '14.75']

2. Window the observed trials

There is one four-second row per annotated trial. subject identifies the participant, while session, run and start sample identify the recording and trial. Keeping these columns is essential: once only the voltage array and class labels remain, there is no reliable way to reconstruct a valid group split from array positions. The source event lasts 4.15 seconds; its final 0.15 seconds are unused.

window_size = int(4 * sfreq)
windows = create_windows_from_events(
    dataset,
    mapping=mapping,
    window_size_samples=window_size,
    window_stride_samples=window_size,
    on_last_window="drop",
    preload=True,
)
metadata = windows.get_metadata().reset_index(drop=True)
y = metadata["target"].to_numpy(dtype=int)
assert len(windows) == len(metadata)
assert set(y) == set(mapping.values())
assert not metadata.duplicated(["subject", "session", "run", "i_start_in_trial"]).any()
print(pd.crosstab(metadata["subject"], y))

col_0    0   1   2   3   4   5   6   7   8   9   10  11
subject
1        15  15  15  15  15  15  15  15  15  15  15  15
2        15  15  15  15  15  15  15  15  15  15  15  15
3        15  15  15  15  15  15  15  15  15  15  15  15

3. Compare what each split evaluates

train_test_split(..., stratify=y) preserves class proportions while sampling rows. It has no knowledge of participant identity. In contrast, GroupShuffleSplit assigns complete subject groups; its test_size=1/3 refers to the fraction of groups, not a guaranteed fraction of windows. Here the equal-sized participant recordings happen to make those fractions agree.

The fixed seed makes the assignments repeatable. It does not protect against leakage; the disjoint-group assertion does that. Group splitting does not promise class balance, so the separate class-set assertion checks that the chosen train and test groups both contain every target class.

groups = metadata["subject"].astype(str).to_numpy()
indices = np.arange(len(y))
random_train, random_test = train_test_split(
    indices, test_size=1 / 3, stratify=y, random_state=42
)
train, test = next(
    GroupShuffleSplit(n_splits=1, test_size=1 / 3, random_state=42).split(
        indices, y, groups
    )
)
assert set(groups[train]).isdisjoint(groups[test])
assert set(train).isdisjoint(test)
assert len(train) + len(test) == len(windows)
assert set(y[train]) == set(y[test]) == set(mapping.values())
fig, axes = plt.subplots(1, 2, figsize=(10, 4), layout="constrained")
for ax, title, training, testing in [
    (axes[0], "Random trials", random_train, random_test),
    (axes[1], "Held-out participant", train, test),
]:
    assignments = np.full(len(y), "train", dtype=object)
    assignments[testing] = "test"
    counts = pd.crosstab(groups, assignments)
    print(
        title, "shared subjects:", sorted(set(groups[training]) & set(groups[testing]))
    )
    print(counts)
    counts.plot.bar(stacked=True, ax=ax, rot=0, title=title)
    ax.set(xlabel="Subject", ylabel="Real trial count")
plt.show()

Random trials shared subjects: ['1', '2', '3']
col_0  test  train
row_0
1        60    120
2        60    120
3        60    120
Held-out participant shared subjects: []
col_0  test  train
row_0
1       180      0
2         0    180
3         0    180

If you shorten windows and create several per trial, group those windows by trial for within-subject evaluation. Fit scalers only after splitting.

Read the assignment tables before fitting

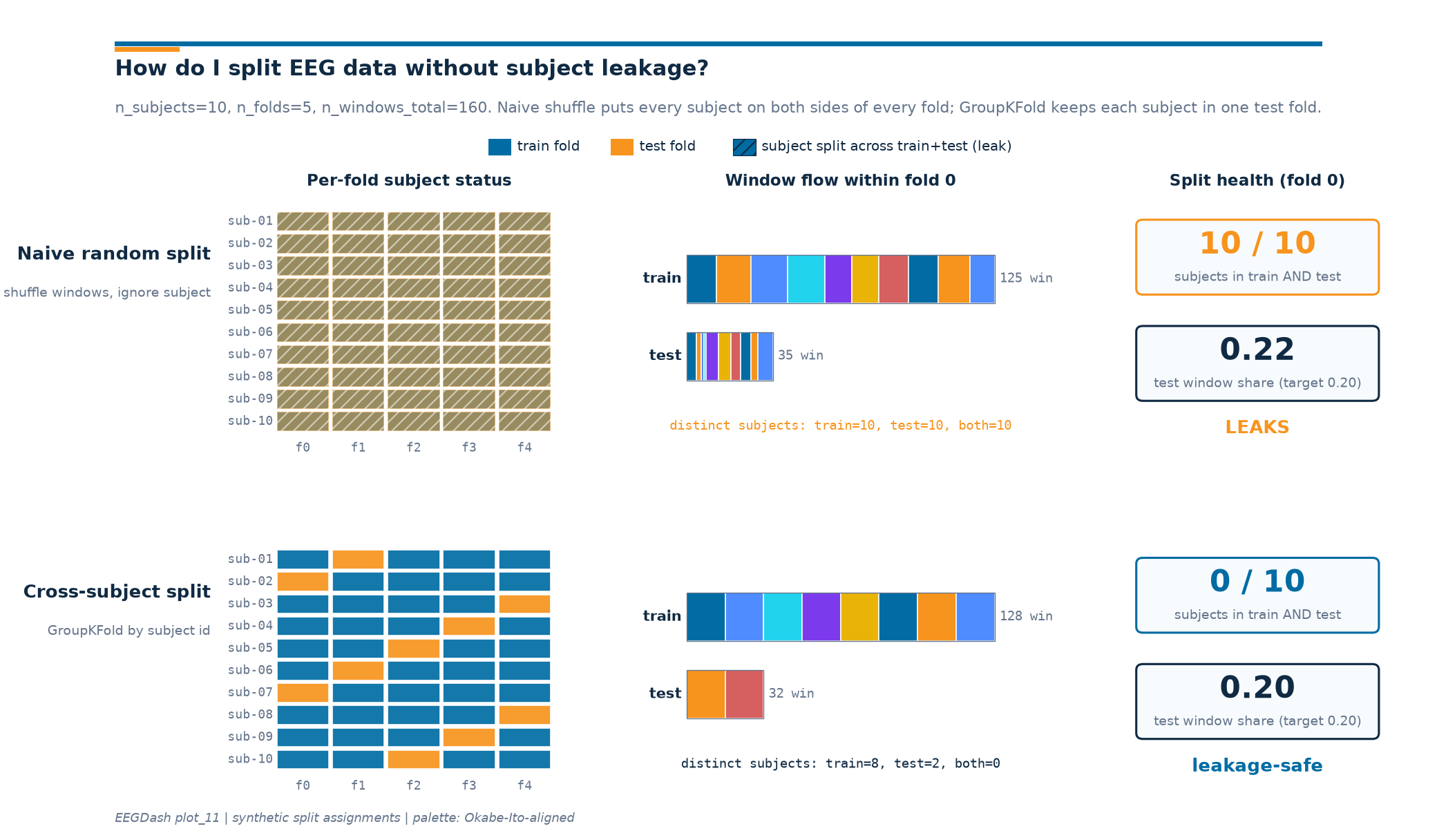

In the random-trial plot, a participant can have both train and test colors. In the grouped plot, each participant should have only one. Both plots use the actual assignments printed above. This demonstrates who is shared; it does not measure how much sharing would inflate a particular classifier.

The grouped indices can now select feature rows in tutorial 12. If a revised experiment learns filters, feature selection or normalization across examples, fit those operations on its training indices. To tune choices, reserve validation participants inside training rather than changing settings after looking at the test participant.
